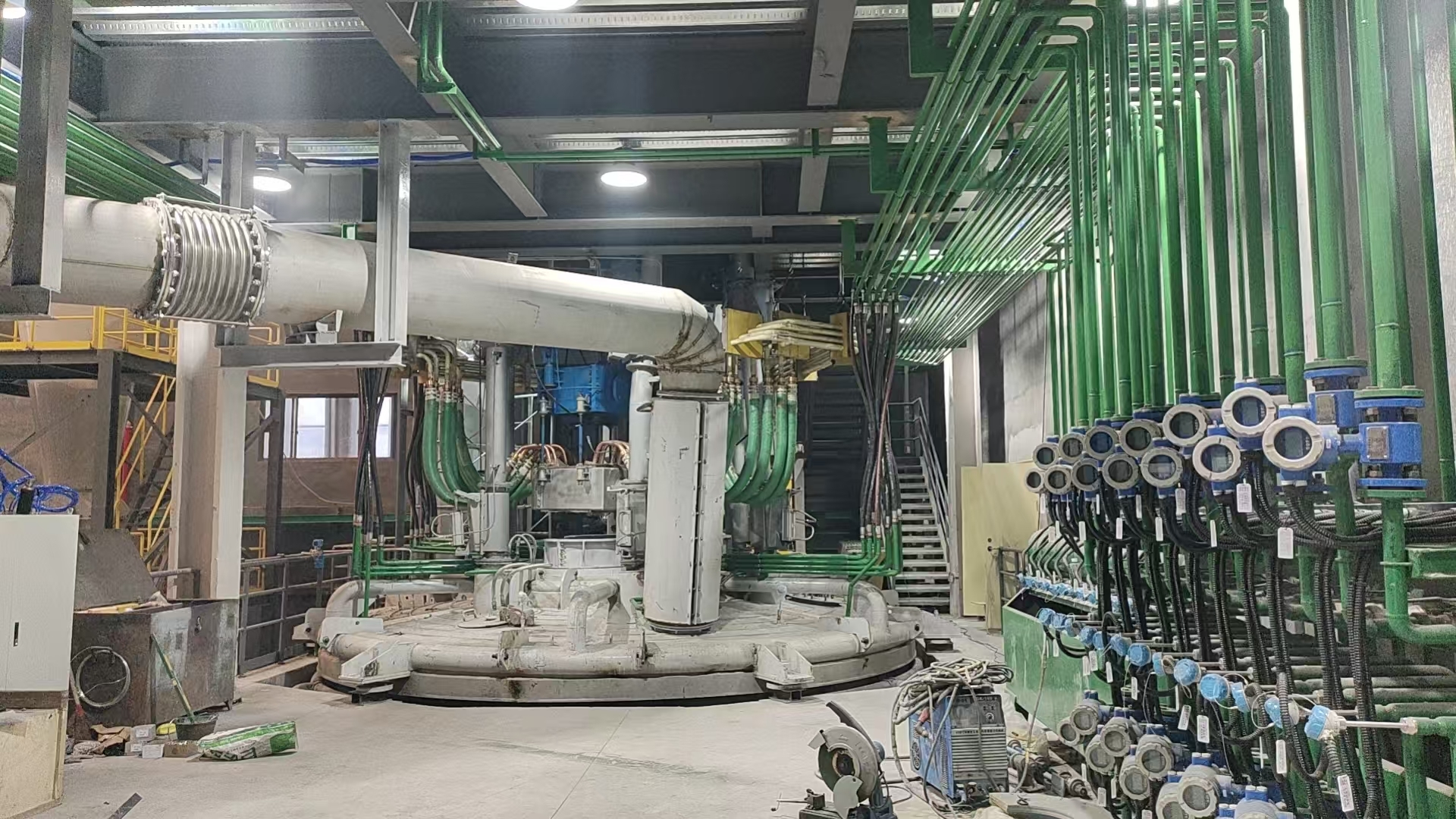

Fly Ash Rock Wool Electric Furnace
| 원래 장소 | 중국 |
|---|---|
| 브랜드 이름 | Shaanxi Chengda |
| 인증 | ISO 9001 |
| 모델 번호 | 장비 처리 능력을 기준으로 협의 |
| 최소 주문 수량 | 1개 단위 |
| 가격 | The price will be negotiated based on the technical requirements and supply scope of Party A |
| 포장 세부 사항 | 당사자 A의 특정 요구 사항에 따라 논의 |
| 배달 시간 | 2개월 |
| 지불 조건 | L/C, T/T, 웨스턴 유니온 |
| 공급 능력 | 생산 공급망을 완성하고 적시에 공급하며 품질 표준을 충족합니다. |
제품 상세 정보
| 강조하다 | fly ash rock wool furnace,electric furnace for hazardous waste,solid waste treatment furnace |
||
|---|---|---|---|
제품 설명
Introduction to Fly Ash Rock Wool Electric Furnace
Fly Ash Rock Wool Electric Furnace is a specialized submerged‑arc electric melting furnace designed for high‑temperature vitrification of municipal solid waste incineration fly ash and production of high‑quality rock wool insulation materials. It converts hazardous fly ash into value‑added rock wool via electric heating, achieving harmless disposal and resource recycling simultaneously.
Core Working Principle
- Raw Material Preparation: Fly ash is mixed with modifiers (e.g., lime, feldspar) to adjust acidity coefficient (1.5–2.0) and melt viscosity.
- Electric Melting: Three‑phase AC or DC power generates submerged arcs, heating the furnace to 1,350–1,550°C to fully melt the mixture into homogeneous molten slag.
- Vitrification & Purification: High temperature decomposes dioxins (destruction rate >99.99%) and stabilizes heavy metals in the glassy phase.
- Fiber Formation: Molten slag flows continuously to a centrifuge at 3.3–4.0 t/h to form rock wool fibers.
Main Structure
- Furnace Body: Steel shell with high‑purity MgO‑C refractory lining, resistant to high temperature and corrosive slag.
- Electrode System: 3 graphite electrodes (φ400–600 mm) with automatic lifting; powered by a dedicated transformer.
- Power Supply: Transformer capacity 3,000–10,000 kVA (common: 5,000–7,500 kVA).
- Tilting & Tapping: Hydraulic tilting (max 45°) and bottom tapping for continuous slag discharge.
- Control System: PLC/DCS for automatic temperature, power, and flow regulation.
- Auxiliary Systems: Dust collection, waste heat recovery, and flue gas treatment.
Typical Technical Parameters
| Parameter | Common Range | Typical 7,500 kVA Furnace |
|---|---|---|
| Transformer Capacity | 3,000–10,000 kVA | 7,500 kVA |
| Furnace Shell ID | φ5,200–6,500 mm | φ6,200 mm |
| Melting Temperature | 1,350–1,550°C | 1,450°C |
| Molten Slag Flow Rate | 3.3–4.0 t/h | 3.8 t/h |
| Slag Acidity Coefficient | 1.5–2.0 | 1.8±0.3 |
| Smelting Cycle | Continuous operation | >8,000 hours/year |
| Hourly Output (Rock Wool) | 4–6 t/h | 5.5 t/h |
| Annual Capacity | 30,000–50,000 t | 45,000 t |
| Unit Power Consumption | 300–400 kWh/t | 350 kWh/t |
| Electrode Consumption | 1.5–2.5 kg/t | 2.0 kg/t |
| Dioxin Destruction Rate | >99.99% | >99.99% |
| Carbon Reduction | ~245 kg CO₂/t | ~245 kg CO₂/t |
Product Specifications (Rock Wool)
| Item | Standard |
|---|---|
| Density | 60–150 kg/m³ |
| Thermal Conductivity | ≤0.044 W/(m·K) |
| Acidity Coefficient | ≥1.8 |
| Fiber Diameter | ≤7.0 μm |
| Fire Resistance | Non‑combustible (Class A) |
| Heavy Metal Leaching | Meets GB/T 41015–2021 |
Key Advantages
- Harmless Disposal: Destroys dioxins and stabilizes heavy metals, fully complying with fly ash treatment standards.
- Resource Recycling: Converts hazardous waste into high‑value insulation material.
- Energy Efficient: Electric heating reduces energy consumption by >40% vs. coke‑fired cupolas.
- Stable Quality: Precise temperature control ensures uniform fiber properties.
- Low Emission: Near‑zero dust and flue gas pollution.
- Long Service Life: Continuous operation >8,000 hours annually.
Typical Application Process
- Batching: Fly ash + modifiers → proportioning and mixing.
- Charging: Continuous feeding into the electric furnace.
- Melting: Submerged‑arc heating to form molten slag.
- Refining: Slag homogenization and impurity removal.
- Fiberization: Slag → centrifuge → rock wool fibers.
- Post‑Treatment: Cooling, curing, and cutting into finished products.
Applications
- Waste Treatment: Harmless disposal of municipal solid waste incineration fly ash.
- Building Insulation: High‑performance rock wool for walls, roofs, and pipelines.
- Industrial Insulation: High‑temperature insulation for furnaces and equipment.
