1000KG DC Arc Furnace for Rebar Production Line Electric Arc Furnace

원래 장소 중국
브랜드 이름 Shaanxi Chengda
인증 ISO 9001
모델 번호 장비 처리 용량에 따라 협상
최소 주문 수량 1 단위
가격 The price will be negotiated based on the technical requirements and supply scope of Party A
포장 세부 사항 당사자의 특정 요구 사항에 따라 논의하십시오
배달 시간 2~3개월
지불 조건 L/C, T/T, Western Union
공급 능력 완전한 생산 공급망, 정시 공급 및 품질 표준 충족

무료 샘플과 쿠폰을 받으려면 연락하세요.

whatsapp:0086 18588475571

웨이 채팅: 0086 18588475571

스카이프: sales10@aixton.com

걱정이 있으시면 24시간 온라인 서비스를 제공합니다.

x
제품 상세 정보
강조하다

1000KG DC arc furnace

,

electric arc furnace for rebar production

,

hazardous waste treatment furnace

필요한 제품을 선택하고 게시판에서 당사와 소통 할 수 있습니다.
메시지를 남겨주세요
제품 설명

This supplier is both a manufacturer and trader, offers quality control, and provides full customization, design customization, and sample customization. The positive review rate is 100.0%.

Features
Electric Arc Furnace Characteristic:
1. Smelting temperature is flexible to be controlled, and meets different steel grade production needs.
2. High heat efficiency, the atmosphere inside the furnace can be controlled.
3. Can remove the phosphorus, sulfur, oxygen, and other impurities and improve steel quality.
4. Easy to control the chemical composition of steel, stable and high recovery rate of alloys.
5. Equipment is a simple and shorter technological process.

Service:
- We can provide a foundation layout and arrangement diagram
- Trustworthy after-sales service, we will send engineers to your factory to install and debug the machines
- Competitive price & excellent quality
- Our machines are easy operation and maintenance
- Lower investment
- Steady performance
- Products are customized for different needs
- Production capability can be adjusted according to customers' request
- Low energy consumption
As a professional Electric Arc Furnace, Induction Furnace, and Submerged Arc Furnace manufacturer in China, we can supply
designing, manufacturing, installation, and commissioning of the equipment with "turn-key" service. We can also design,
manufacture and revamp other non-standard equipment according to the requirements of users.
Please send us more information about your project, we would like to give you our proposal immediately after getting your details.
Sincerely welcome you to come and visit our plant.

Specification
Model
Furnace enclosure inner diameter
(mm)
Rate capacity/Max capacity (ton)
Furnace transformer
Reactor power
(KVA)
Electrode pitch circle diameter
Electrode diameter(mm)
Rated power
(KVA)
Secondary voltage
(V)

HX-0.5
2000
0.5/1
630
200-98
120
500
150
HX-1.5
2200
1.5/3
1250
210-104
200
650
200
HX-3
2600
3/8
2200
210-104
250
750
250
HX-5
3200
5/12
3200
221-110
320
850
300
HX-10
3500
10/16
5000
240-121
360
1000
350
6300
260-139
360
HX-15
3700
15/20
6300
260-139
340
1000
350
9000
260-139
HX-20
4000/
4200
20/32
9000
260-139
/
1000
350
12500
340-195
/
1050
400
16000
375-200
/
1050
400
HX-30
4600
30/45
16000
375-200
/
1100
450
25000
570-350
4000
1100
450
32000
650-350
6800
1100
450
HX-50
5000
50/60
25000
570-350
4000
1100
450
32000
650-350
6800
1100
450
35000
670-370
7800
1100
450
HX-80
5800
85/95
35000
650-350
6800
1100
450
40000
690-390
8500
1250
500
50000
800-500
9800
1300
500
HX-100
6200
100/120
35000
670-520-370
7800
1100
450
50000
800-650-340
9800
1300
500
63000
920-720-480
13000
1350
600
Application

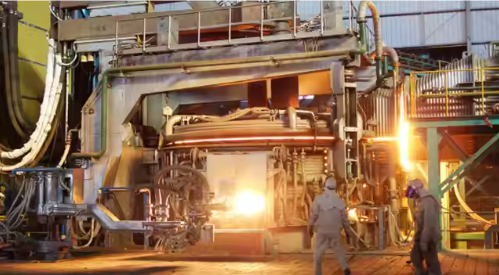

The electrice arc furnace for steel-making is a special purpose equipment that makes ordinary steel ,quality carbon steel alloy steel and non-corrosive steel with electric arc as heat source and scrap steel (iron) as raw material.
