Reduction Iron Electric Furnace
| 원래 장소 | 중국 |
|---|---|
| 브랜드 이름 | Shaanxi Chengda |
| 인증 | ISO 9001 |
| 모델 번호 | 장비 처리 능력을 기준으로 협의 |
| 최소 주문 수량 | 1개 단위 |
| 가격 | The price will be negotiated based on the technical requirements and supply scope of Party A |
| 포장 세부 사항 | 당사자 A의 특정 요구 사항에 따라 논의 |
| 배달 시간 | 2개월 |
| 지불 조건 | L/C, T/T, 웨스턴 유니온 |
| 공급 능력 | 생산 공급망을 완성하고 적시에 공급하며 품질 표준을 충족합니다. |
제품 상세 정보
| 강조하다 | electric reduction iron furnace,ferroalloy smelting furnace,industrial electric iron furnace |
||
|---|---|---|---|
제품 설명

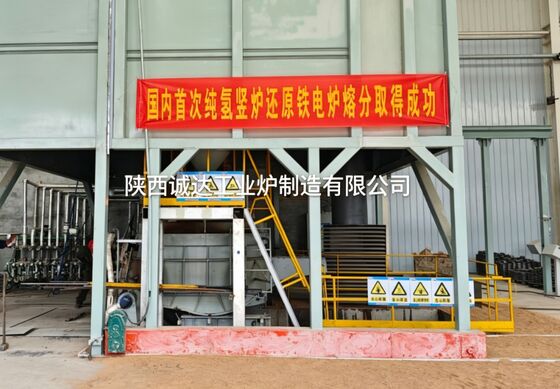

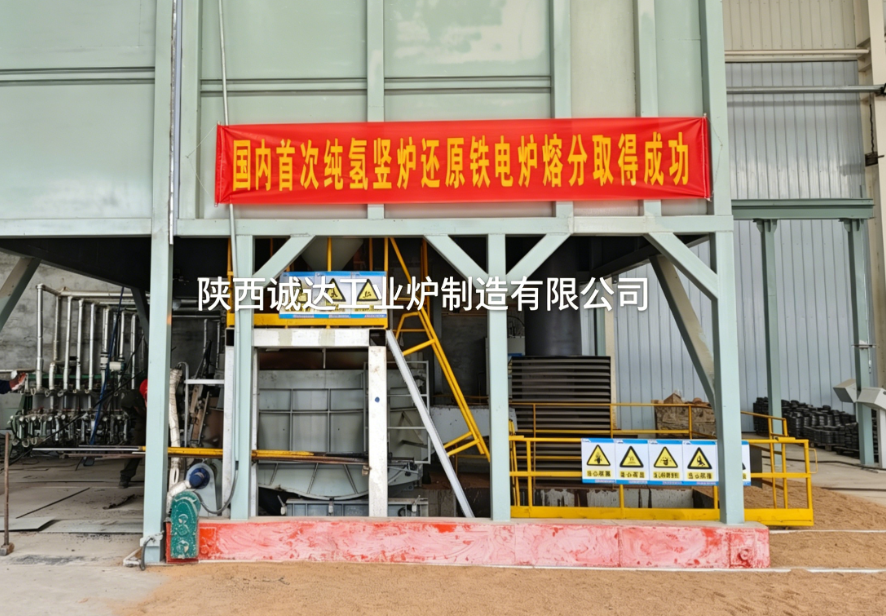

Reduction Iron Electric Furnace
Equipment Introduction & Technical Parameters
Reduction Iron Electric Furnace (also known as Direct Reduction Iron Electric Furnace, Smelting Reduction Furnace, Submerged Arc Reduction Furnace) is a key metallurgical equipment that uses electric energy as the heat source to reduce iron ore (or iron concentrate, pellets) into metallic iron (Direct Reduced Iron DRI / Sponge Iron or molten pig iron) at high temperatures.
Different from traditional blast furnaces, it does not require coke and mainly relies on carbonaceous reductants (coal/coke) and electric heat. It is widely used in electric furnace steelmaking, precision casting, etc.
1. Equipment Classification & Structure
1.1 Main Types
- Submerged Arc Reduction Furnace (Mineral Heat Furnace): The most mainstream type. Electrodes are buried in charge, heated by electric arc + resistance heat, closed/semi-closed, for large-scale continuous production.
- Smelting Reduction Furnace (e.g., SRV Furnace): Integrates prereduction and final reduction, directly producing liquid hot metal with high capacity.
- Shaft Furnace Type Reduction Electric Furnace: Gas-based + electric heating, producing solid sponge iron (DRI).
1.2 Main Components (Submerged Arc Type)
-
Power Supply System
- Furnace transformer (low voltage, high current, on-load voltage regulation)
- Short network, high/low voltage cabinet, reactive power compensation
-
Electrode System
- Soderberg / graphite electrode, electrode holder, lifting & slipping device
-
Furnace Body System
- Furnace shell (steel plate), furnace lining (carbon/magnesia refractory)
- Tap hole & slag hole
-
Auxiliary Systems
- Water cooling system
- Feeding system
- Flue gas purification & waste heat recovery
2. Working Principle
- Heat Source: Electric arc (3000–6000°C) + resistance heat in burden.
- Reduction Reactions:
- Process: Preheating → high-temperature reduction → slag-iron separation → tapping.
3. Typical Technical Parameters
3.1 Electrical Parameters
| Parameter | Range | Description |
|---|---|---|
| Transformer Capacity | 6,300 – 75,000 kVA | Higher capacity = higher output |
| Secondary Voltage | 80 – 290 V | Low voltage, high current |
| Secondary Current | 20,000 – 80,000 A | Phase current |
| Power Factor | ≥ 0.9 | With compensation |
3.2 Furnace & Electrode Parameters (33,000 kVA example)
- Furnace shell: round, OD 10–12 m, height 3.5–5.0 m
- Furnace chamber: diameter 7–9 m, depth 2.5–3.5 m
- Electrodes: 3 pieces, triangular arrangement, Φ1.2–1.5 m
- Electrode circle diameter: 4.0–5.5 m
- Lining life: 3–7 years
3.3 Capacity & Consumption
- Daily output: 200–800 t/d
- Annual capacity: 60,000 – 250,000 t/y
- Power consumption: 2,400 – 3,800 kWh/t DRI
- Reductant: 450 – 650 kg/t
- Flux (lime/dolomite): 150 – 300 kg/t
4. Features & Advantages
- Flexible raw materials: Uses ore, pellets, coal; no coke required.
- High-quality product: Low S/P, high purity, ideal for EAF steelmaking.
- Short process, low pollution: No coking or sintering, lower CO₂ emissions.
- Stable control: Precise electric heating, stable temperature & atmosphere.
- Wide capacity range: From small (6,300 kVA) to large (75,000 kVA).
